Element Range

Element 50

  • Powerful 1500W motor featuring a two-speed gearbox.

  • 15kg in total weight.

  • Suitable for drilling up to 5omm diameter by 50mm depth.

  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

  • Internal cabling reduces the risk of damage and downtime for your magdrill.

  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.

  • Reversible features to allow tapping, 13mm chuck also allows twist drilling.

  • Can be used to countersink up to 30mm.

  • Dual motor protection system to prolong the machine’s life and prevent unwanted wear.
Thumbnail of
Thumbnail of
Thumbnail of
Thumbnail of
Get In Touch
background_RGB-portrait

DOWNLOAD OUR BROCHURE

DOWNLOAD

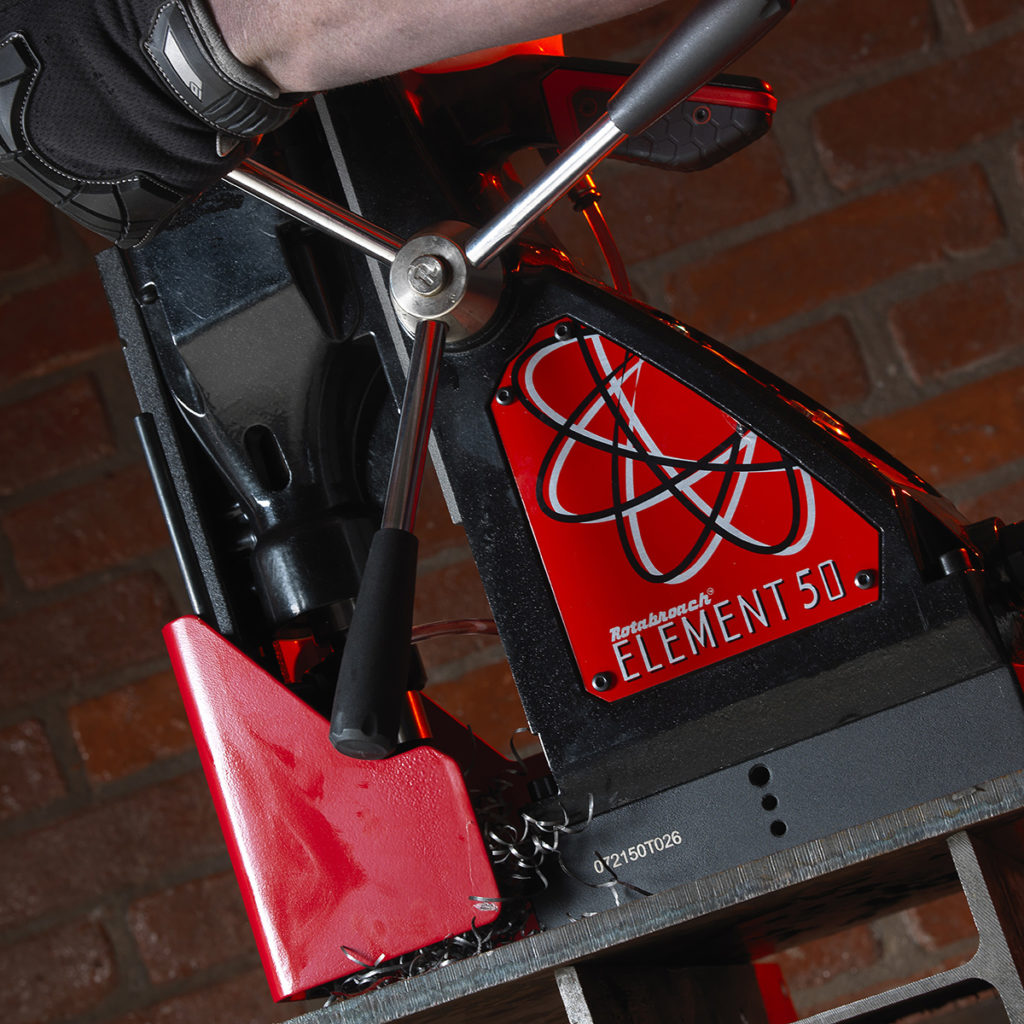

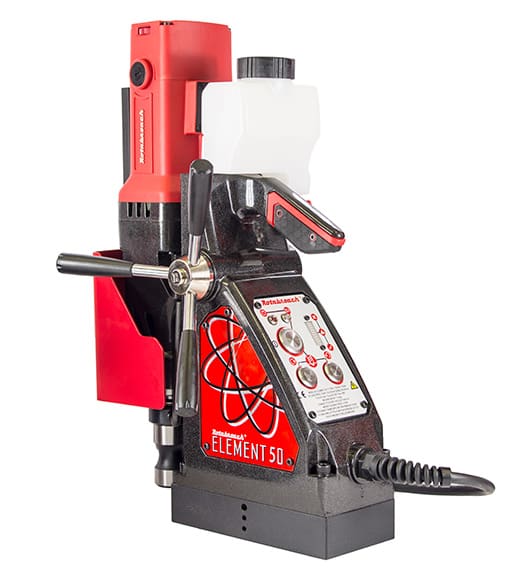

The Element 50 Mag Drill

Fitted with an impressive 1500W motor featuring two gears, 12 forward and reverse speeds and weighing only 15kg, the Element 50 offers an excellent all-around package. Perfect for drilling, countersinking and threading, this drill can rise to any challenge under almost any conditions and is ideally suited to both workshop and site usage. Cutting up to a diameter of 50mm and a depth of 50mm, this drill is as versatile as it is effective. With Rotabroach’s innovative CutSmart technology, this drill minimalizes motor and cutter wear, prolonging overall tool life without compromising on performance. It’s dual motor protection, internal cooling and concealed cables all further reduce the risk of damage- and therefore downtime- of the drill, making projects faster and more efficient. All-in-all, this drill is ready to excel in a variety of positions, earning its reputation as one of Rotabroach’s most versatile machines.

CutSmart – Prolonging Power Tool Performance

Mag drills are powerful tools that can cut through materials at an impressive rate, but they also pose hazards if not used appropriately, or an unexpected fault occurs. Even the most experienced steel fabricator, track expert or ship builder can have accidents if their tools let them down, and that’s why we wanted to create CutSmart – to ensure this never happens.

With CutSmart, you will always know if too much force is being applied to your steel, aluminium, copper, or other material, so that you can respond quickly, safely and effectively. Customer safety is of the utmost importance to us here at Rotabroach, and with CutSmart, your mag drills will help maintain your safety standards no end.

Learn about CutSmart™
CutSmart

Key Features

  • The ‘Element 50’ is one of Rotabroach’s most versatile machines.
  • Small in size, coming in at 460mm height.
  • Dual motor protection system prolonging the machines life.
  • Internal cabling removed the risk of damage and downtime for your magdrill.
  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
  • Reversible features to allow tapping 13mm drill chuck that can be used for twist drills
  • Can be used to countersink up to 30mm*

SPECIFICATION

Model Number

Element 50/1 / Element 50/3
Motor Specification

110V 1500W / 230V 1500W
No load RPM

Low Gear: 100-265 RPM/High Gear: 200-500 RPM
Max Hole Cutting Capacity

ø50 x 50mm Deep – 23mm with MT Shank Drill
Overall Dimension

Height: 460mm / Width: 195mm with Capstan / Length: 400mm with Guard
Machine Weight

15.8kg


Magnetic Adhesion

13,500N
Magnet Size

200mm x 98mm
Safety Features

Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
DOWNLOAD MANUAL POWER TOOLS BROCHURE CUTTERS & ACCESSORIES BROCHURE

Element 50
