Magnetic Drills

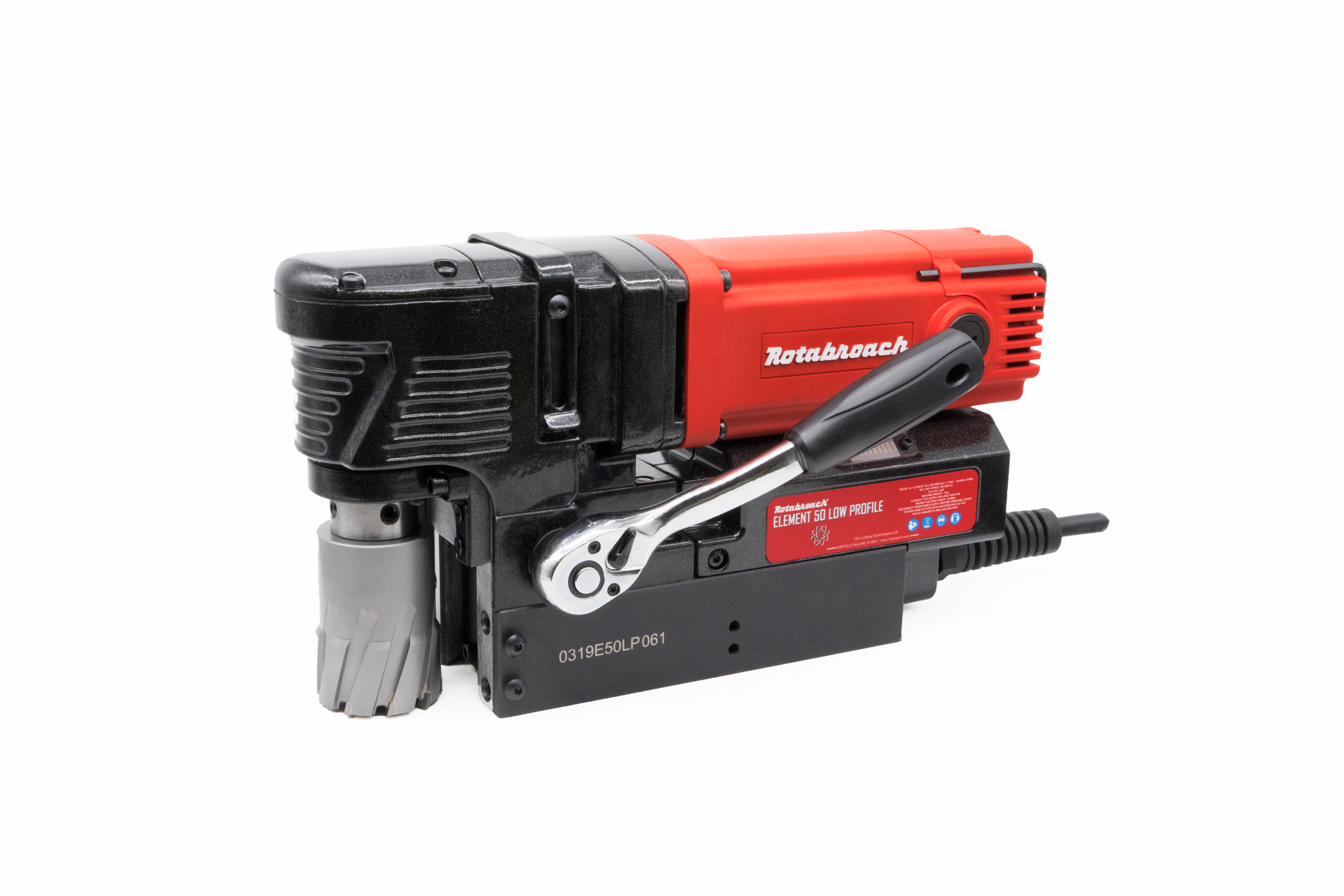

Element 50 Low Profile

  • Largest capacity low profile magdrill on the market, with a maximum capacity of 50mm

  • Cutting diameter and depth of cut to 50mm

  • 1200W motor with variable, 6-speed setting

  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life

  • Can be used to countersink up to 30mm*

  • Internal cabling removed the risk of damage and downtime for your magdrill

  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.

  • The smallest sized magdrill in the Element range at just 179mm in height, allowing for you to reach those hard to drill areas!

  • Extremely small in size (514mm), this magnetic drill revels in the harshest of environments.

  • Extremely lightweight for ease of use 11kg

  • *requires an extension arbor – RD32059

The new Rotabroach Element 50 Low Profile is our latest machine, with the potential to transform how you work on site.

Small in height, with powerful motor and 50mm cutting capacity, perfect for confined spaces and everyday drilling requirements, so you don’t have to compromise.

element-50-low-profile
Thumbnail of http://element-50-low-profile
Thumbnail of
Thumbnail of
Thumbnail of

Element 50 Low Profile Video

Get In Touch

SPECIFICATION

Model Number

Element 50 Low Profile 1 / Element 50 Low Profile 3
Motor Specification

110V/1200W / 230V/1200W
No load RPM

Range: 250-500RPM
Max Hole Cutting Capacity

⌀50 x 50mm Deep
Overall Dimension

Height: 179mm / Width: 100mm / Length: 329mm
Machine Weight

11kg
Magnetic Adhesion

10000N
Magnet Size

192mm x 82mm
Safety Features

Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Safety Strap

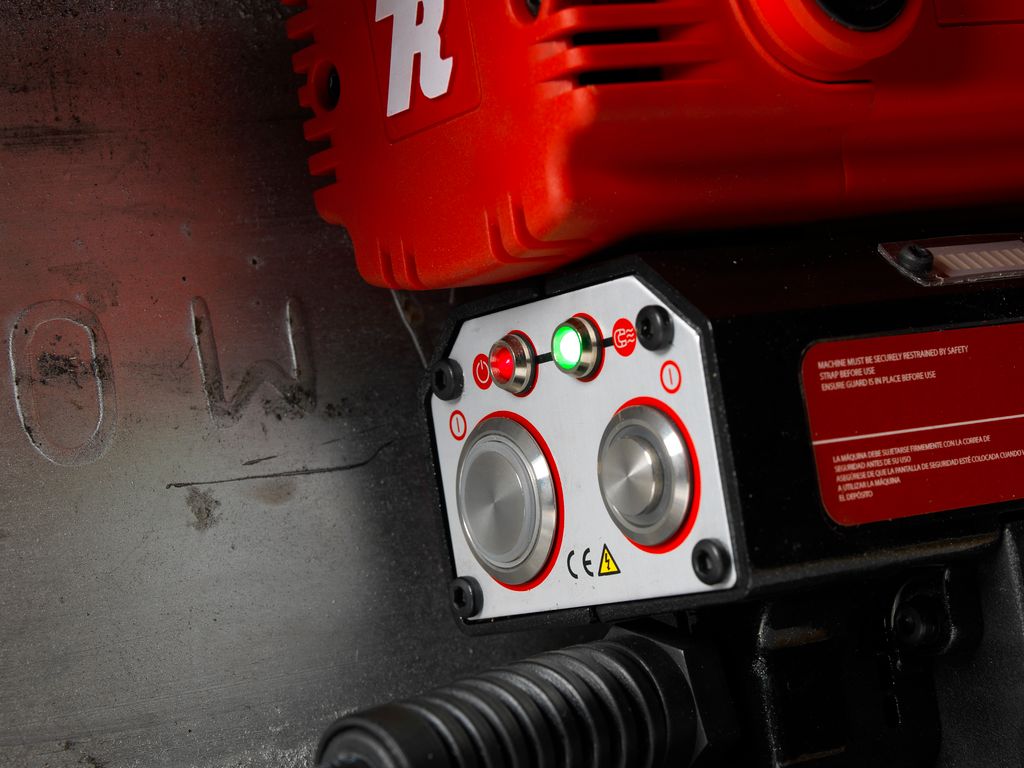

CutSmart Panel
