Magnetic Drills

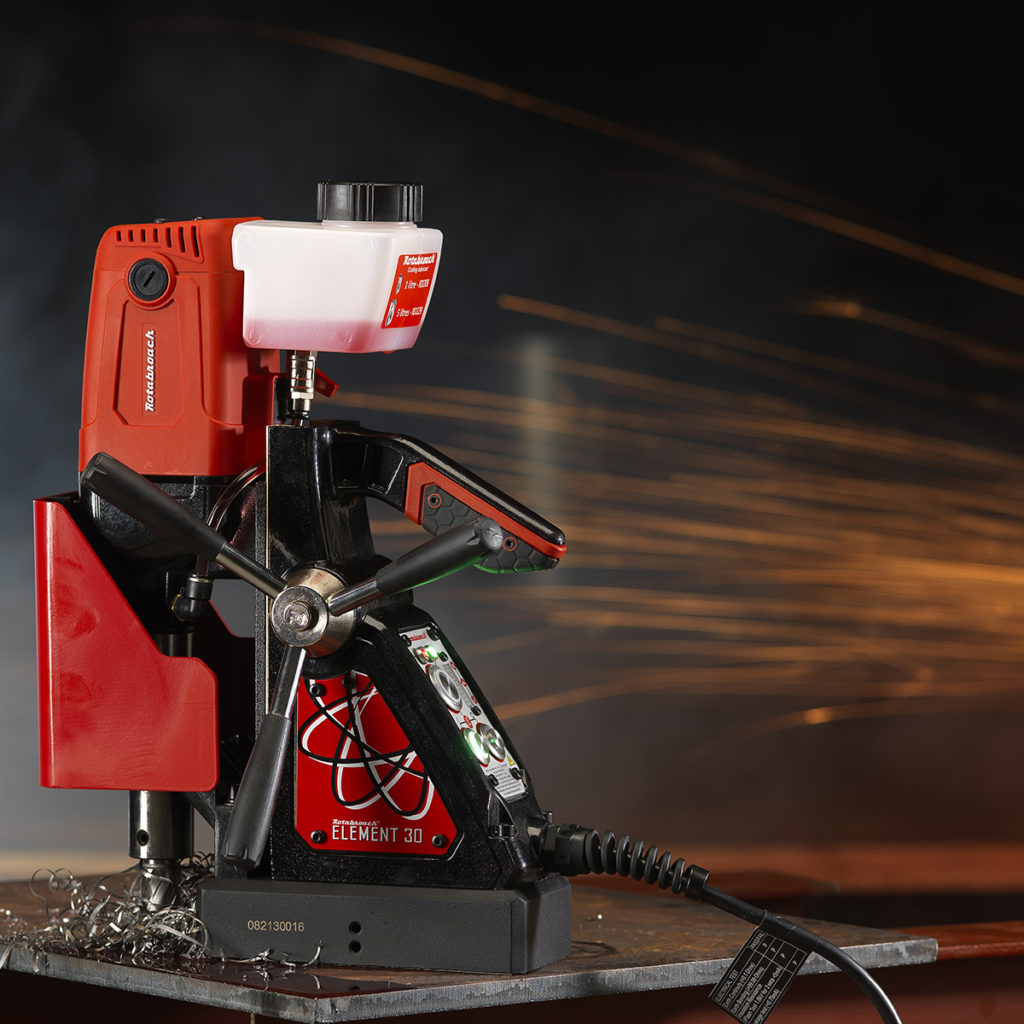

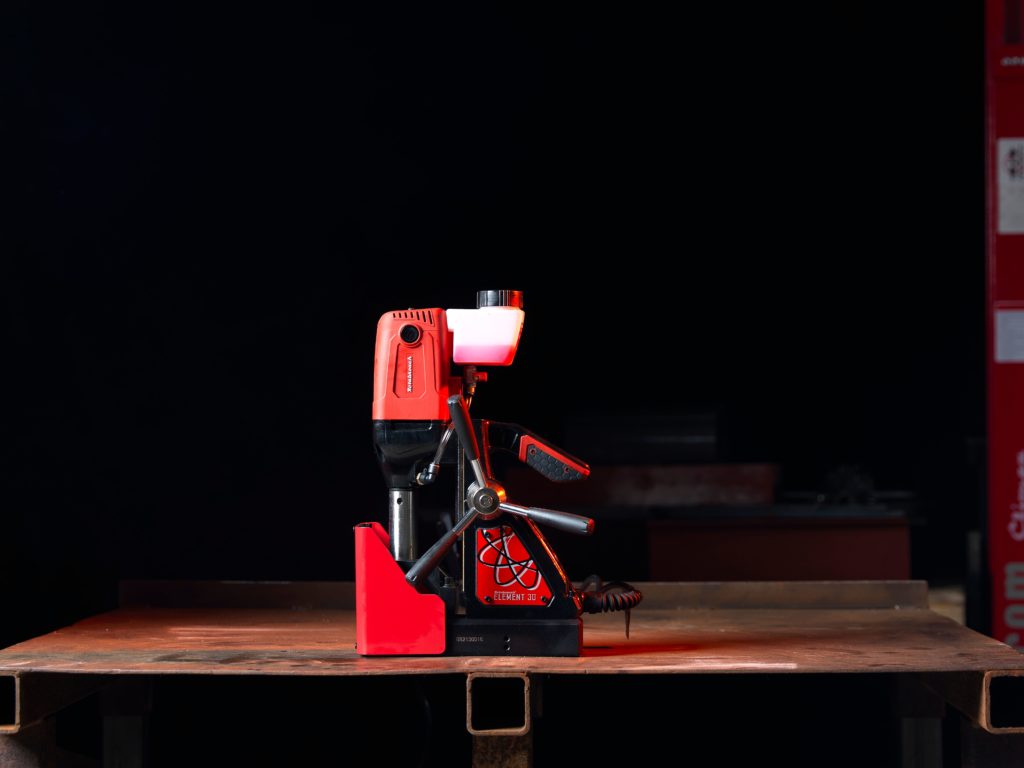

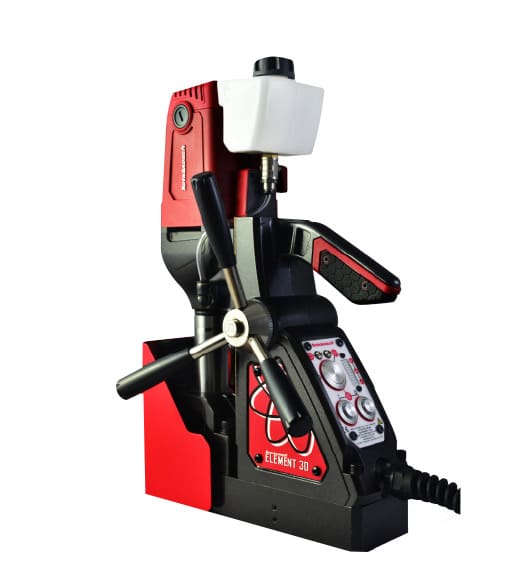

Element 30

  • Powerful 850w motor.  The ‘Element 30’ is a combination of power and portability.

  • Weighs 10.8kg, making the ‘Element 30’ one of the lightest magnetic based drills in the world.

  • Suitable for drilling up to 32mm diameter by 35mm depth.

  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

  • Internal cabling removed the risk of damage and downtime for your magdrill.

  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.

  • Small in size (410mm), this magnetic drill revels in the harshest of environments.

  • 32mm max cutter diameter.

Thumbnail of
Thumbnail of
Thumbnail of
Thumbnail of
Thumbnail of

SPECIFICATION

Model Number

Element 30/1 / Element 30/3

Motor Specification

110V 850W / 230V 850W

No load RPM

600 RPM

Max Cutting Capacity

ø32 x 35mm deep

Drill Chuck Capacity

ø13mm

Overall Dimension

Height: 410mm / Width: 165mm with Capstan / Length: 270mm with Guard

Machine Weight

10.8kg

Magnetic Adhesion

10,000N

Magnet Size

165mm x 80mm

Safety Features

Cutsmart™ Technology / Fixed Guard / Magnetic Detection
