Element Range

Element 50 Automatic

  • Powerful 1500w motor with a two-speed mechanical gearbox.

  • Fully automatic drilling. The machine drills the hole, retracts and powers off – ready to be moved safely on to the next hole.

  • Suitable for drilling up to 40mm diameter by 50mm depth.

  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

  • Internal cabling reduces the risk of damage and downtime for your magdrill.

  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.

  • At just 514mm, this magnetic drill can perform in difficult environments.

  • 50mm max cutter diameter.

  • Dual motor protection system to prolong the machine’s life and prevent unwanted wear.
Thumbnail of
Thumbnail of
Thumbnail of
Thumbnail of
Get In Touch
background_RGB-portrait

DOWNLOAD OUR BROCHURE

DOWNLOAD

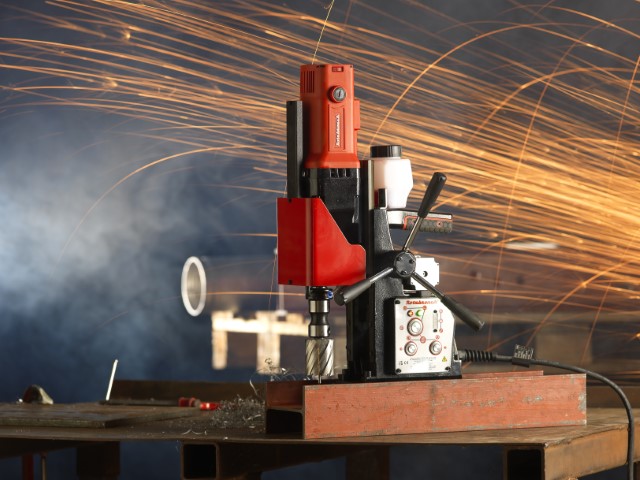

The Element™ 50 Automatic. Fully automatic drilling.

Unlike many other semi-auto machines – our machine will drill the hole, retract, and power off – ready to be safely moved to the next hole. It features all the fantastic features of our Element™ mag drills, meaning you can use it in auto mode or in manual as a complete all-rounder. Fitted with Cutsmart™ technology to enhance tool life, speed of cut and user safety.

This drill minimalizes motor and cutter wear, prolonging overall tool life without compromising on performance. It’s dual motor protection, internal cooling and concealed cables all further reduce the risk of damage- and therefore downtime- of the drill, making projects faster and more efficient. All-in-all, this drill is ready to excel in a variety of positions, earning its reputation as one of Rotabroach’s most versatile machines.

rotabroach_texture-background_RGB

CutSmart – Prolonging Power Tool Performance

Mag drills are powerful tools that can cut through materials at an impressive rate, but they also pose hazards if not used appropriately, or an unexpected fault occurs. Even the most experienced steel fabricator, track expert or ship builder can have accidents if their tools let them down, and that’s why we wanted to create CutSmart – to ensure this never happens.

With CutSmart, you will always know if too much force is being applied to your steel, aluminium, copper, or other material, so that you can respond quickly, safely and effectively. Customer safety is of the utmost importance to us here at Rotabroach, and with CutSmart, your mag drills will help maintain your safety standards no end.

Learn about CutSmart

Key Features

  • The ‘Element 50’ is one of Rotabroach’s most versatile machines.
  • Fully Automatic Drilling.
  • Dual motor protection system prolonging the machines life.
  • Internal cabling removed the risk of damage and downtime for your magdrill.
  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
  • Reversible features to allow tapping 13mm drill chuck that can be used for twist drills
  • Can be used to countersink up to 30mm*

SPECIFICATION

Model Number

Element 50/1 Auto  / Element 50/3 Auto
Motor Specification

110V 1500W / 230V 1500W
No load RPM

Low Gear: 100-265RPM / High Gear: 200-500RPM
Max Cutting Capacity

⌀50 x 50mm Deep – 20mm with 2MT twist drill
Overall Dimension

Height: 586mm / Width: 190mm / Length: 317mm
Machine Weight

18.5kg
Magnetic Adhesion

13500N
Magnet Size

200 x 98mm
Safety Features

Cutsmart™ Technology / Magnetic Detection / Secondary Motor Protection
DOWNLOAD MANUAL POWER AND CUTTING TOOLS BROCHURE
