Magnetic Drills

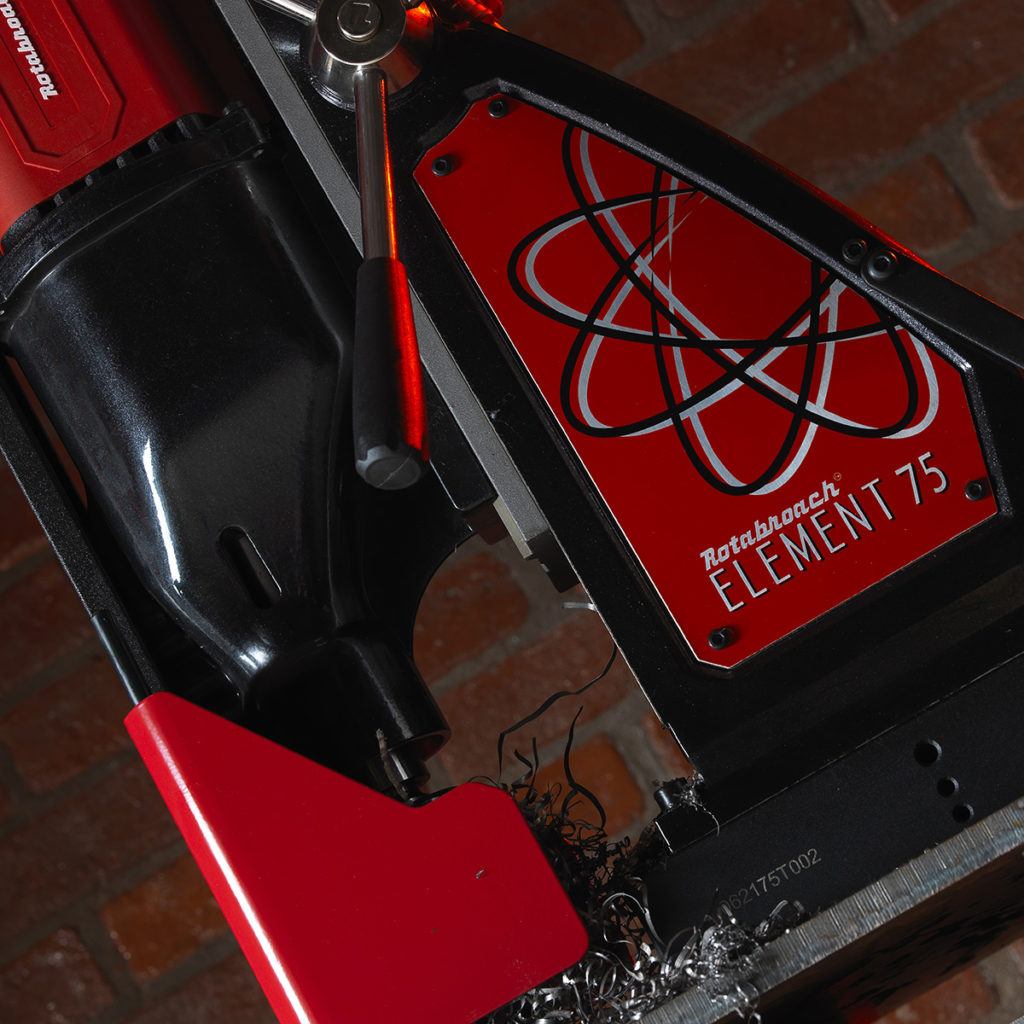

Element 75

  • For heavy-duty operations the ‘Element 75’ is a must for drilling larger holes.  Suitable for drilling up to 75mm diameter by 75mm depth

  • Compact, durable and more portable than other larger machines.

  • The ‘Element 75’ offers forward and reverse functionality.

  • Supplied as either a swivel base or a non-swivel option.

  • Dual motor protection system to prolong the machine’s life and prevent unwanted wear.

  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

  • Internal cabling removed the risk of damage and downtime for your magdrill

  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer

  • 13mm drill chuck that can be used for twist drills.

  • Powerful 1800w motor with a two speed mechanical gearbox

  • Can be used to countersink up to 40mm*
element-75-mag-drill
Thumbnail of http://element-75-mag-drill
Thumbnail of
Thumbnail of
Thumbnail of
Get In Touch
background_RGB-portrait

SPECIFICATION

Model Number

Element 75/1 / Element 75/3
Motor Specification

110V 1800W / 230V 1800W
No load RPM

Low Gear: 70 -180 RPM / High Gear: 200-500 RPM
Max Hole Cutting Capacity

ø75 x 75mm Deep – 26mm with MT Drill
Overall Dimension

Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight

23.5kg
Magnetic Adhesion

18,500N
Magnet Size

220mm x 114mm
Safety Features

Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
DOWNLOAD MANUAL DOWNLOAD BROCHURE

CutSmart Panel

Element 75
