Magnetic Drills

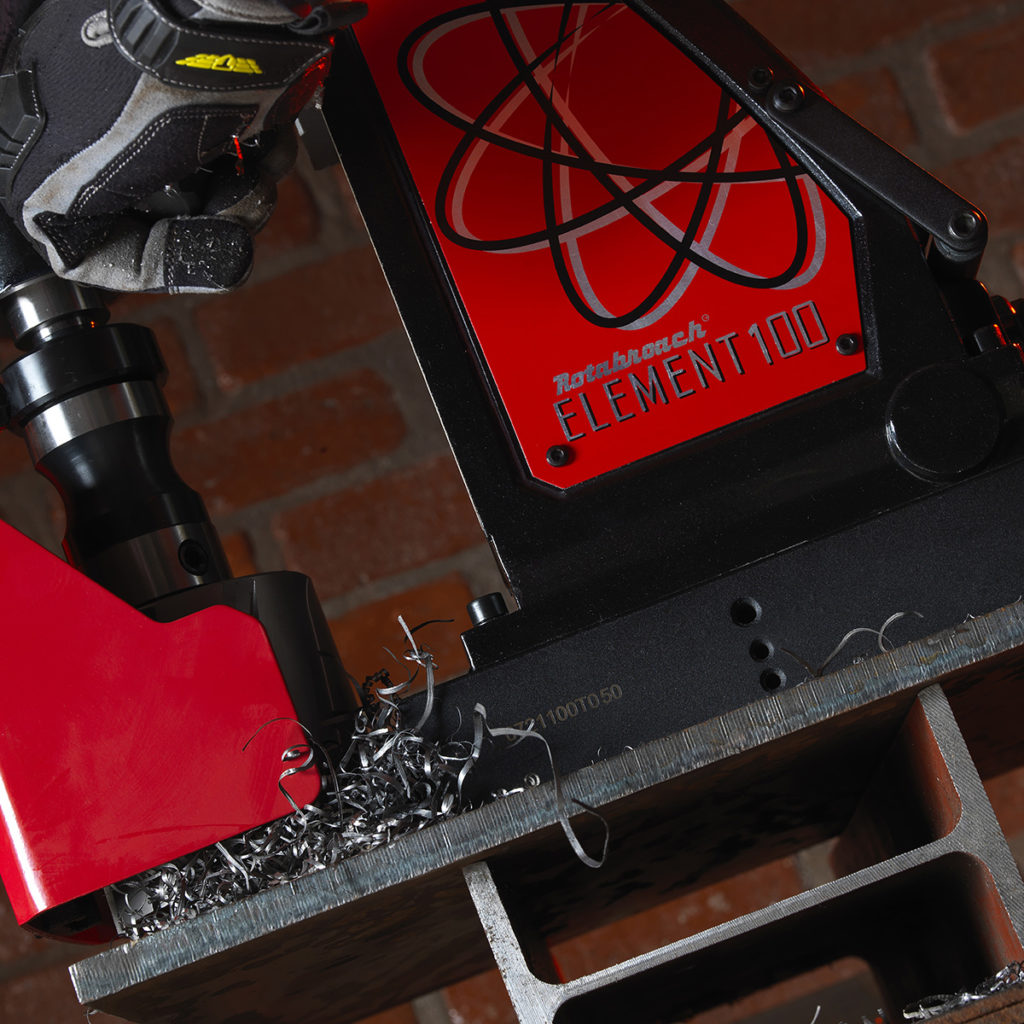

Element 100

  • Rotabroach’s largest machine (733mm)

  • Suitable for drilling up to 100mm diameter by 100mm depth

  • Forward and reverse functionality for tapping.

  • Supplied as either a swivel base or a non-swivel option.

  • Dual motor protection system to prolong the machine’s life and prevent unwanted wear

  • 13mm drill chuck that can be used for twist drills

  • Powerful 2000w motor with a two speed mechanical gearbox

    • Can be used to countersink up to 40mm*
  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

  • Internal cabling removed the risk of damage and downtime for your magdrill

Thumbnail of
Thumbnail of
Thumbnail of

SPECIFICATION

Model Number

Element 100/1 / Element 100/3

Motor Specification

110V 2000W / 230V 2000W

No load RPM

Gear 1: 45-129 RPM

Gear 2: 70-208 RPM

Gear 3: 150-434 RPM

Gear 4: 240-700 RPM

Max Hole Cutting Capacity

ø100 x 100mm Deep – 31.75 with MT Drill

Overall Dimension

Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard

Machine Weight

24.8kg

Magnetic Adhesion

20,000N

Magnet Size

228mm x 114mm

Safety Features

Cutsmart™ Technology / Fixed Guard / Magnetic Detection
